NOVOFLEX | Ecoflex
High-Performance General Purpose Cable Fastening
Reliable cable bundling and organized harness management across electrical, industrial, telecom, automotive, networking, and infrastructure installations where consistent fastening performance, flexibility, and long-term durability are essential. Designed for general-purpose applications requiring lightweight yet dependable cable retention under varying environmental and operational conditions.
In cable management systems, fastening reliability directly impacts routing stability, maintenance efficiency, and long-term operational safety. Weak fastening systems gradually fail under vibration, environmental exposure, or sustained mechanical stress, leading to disorganized routing and cable instability. Novoflex Eco Flex Nylon Cable Ties are engineered to deliver secure locking performance with optimized flexibility, durability, and value-driven efficiency for a wide range of industrial and commercial applications.
Key Features
- High-performance general-purpose cable tie.
- Secure one-way locking mechanism.
- Manufactured from virgin Nylon material.
- Lightweight yet durable construction.
- Resistant to fungus, corrosion, and mild acids.
- Halogen-free construction.
- Available in Natural White and UV Resistant Black variants.
- Compatible with manual or tensioning tool installation.
- Multiple sizes and tensile strength variants available.
Technical Specifications
- Product Type: Nylon Cable Tie
- Material: Virgin Nylon
- Locking System: One-Way Ratchet Mechanism
- Flammability Rating: UL94 V2
- Operating Temperature: -25°C to +85°C
- Environmental Resistance: Resistant to Fungus, Corrosion & Mild Acids
- Halogen Free: Yes
- Standard Colours: Natural White & UV Resistant Black
- Optional Colours: Orange, Red, Yellow, Green, Sky Blue, Dark Blue (MOQ Applicable)
- Installation Method: Manual or Tensioning Tool Installation

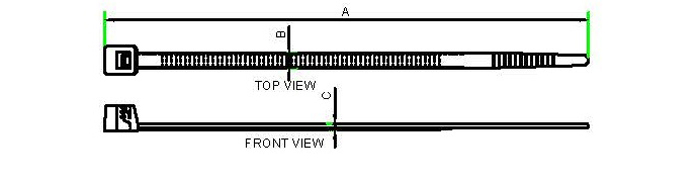

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Min Loop Tensile Strength (kg) | Max Bundle Dia | Quantity | Select | |
|---|---|---|---|---|---|---|---|---|
| EF 25100 | 100 | 2.5 | 1 | 7 | 24 | 1000 | ||
| EF 25150 | 150 | 2.5 | 1.1 | 6 | 40 | 1000 | ||
| EF 25200 | 200 | 2.5 | 1.2 | 6 | 55 | 1000 | ||
| EF 30150 | 150 | 3 | 1.1 | 10 | 38 | 1000 | ||
| EF 36150 | 150 | 3.6 | 1.1 | 12 | 36 | 1000 | ||
| EF 30200 | 200 | 3 | 1.1 | 10 | 54 | 100 | ||
| EF 36200 | 200 | 3.6 | 1.2 | 12 | 54 | 100 | ||
| EF 36250 | 250 | 3.6 | 1.2 | 12 | 70 | 100 | ||
| EF 36300 | 300 | 3.6 | 1.2 | 12 | 86 | 100 | ||
| EF 36370 | 370 | 3.6 | 1.2 | 12 | 108 | 100 | ||
| EF 47200 | 200 | 4.7 | 1.2 | 18 | 50 | 100 | ||
| EF 47250 | 250 | 4.7 | 1.3 | 18 | 64 | 100 | ||
| EF 47300 | 300 | 4.7 | 1.3 | 18 | 82 | 100 | ||
| EF 47368 | 368 | 4.7 | 1.3 | 18 | 103 | 100 | ||
| EF 48450 | 450 | 4.8 | 1.4 | 18 | 130 | 100 | ||
| EF 46550 | 550 | 4.6 | 1.3 | 18 | 162 | 100 | ||
| EF 75150 | 150 | 7.5 | 1.5 | 28 | 32 | 100 | ||
| EF 75200 | 200 | 7.5 | 1.5 | 28 | 49 | 100 | ||
| EF 75250 | 250 | 7.5 | 1.5 | 28 | 65 | 100 | ||
| EF 76300 | 300 | 7.6 | 1.6 | 40 | 76 | 100 | ||
| EF 76380 | 380 | 7.6 | 1.5 | 40 | 108 | 100 | ||
| EF 75450 | 450 | 7.5 | 1.6 | 40 | 125 | 100 | ||
| EF 90550 | 550 | 9 | 1.8 | 60 | 156 | 100 | ||
| EF 90610 | 610 | 9 | 1.8 | 60 | 171 | 100 | ||
| EF 90750 | 750 | 9 | 1.8 | 60 | 219 | 100 | ||
| EF 90920 | 920 | 9 | 1.8 | 60 | 275 | 100 | ||
| EF 122650 | 650 | 12.2 | 2 | 75 | 185 | 100 |
Standard & Custom Colours
Applications
- Electrical cable bundling
- Industrial wire harness management
- Telecom and networking systems
- Control panel organization
- Automotive wiring systems
- Consumer electronics
- Appliance internal wiring
- Infrastructure and project installations
- Data communication cable routing
Use When
- General-purpose cable fastening is required.
- Organized cable routing is important.
- Lightweight yet durable fastening is necessary.
- Long-term fastening reliability is required.
- Fast and economical installation is preferred.
Avoid When
- Reusable fastening systems are required.
- Extreme high-temperature applications exceed material capability.
- Heavy-duty metal fastening systems are mandatory.
- Specialized chemical-resistant materials are required beyond Nylon compatibility
Why Novoflex
NOVOFLEX develops industrial fastening and cable management solutions engineered for installation efficiency, long-term operational reliability, and industrial-grade durability. With decades of expertise in engineered plastic components, Novoflex products are trusted across electrical, automotive, telecom, infrastructure, and industrial sectors worldwideNOVOFLEX |
