NOVOFLEX | Cable Gland (ODCL Series)
IP68 Cable Protection for Dynamic Systems
Telecom infrastructure, EV battery systems, automotive assemblies, and industrial electrical installations where cables are exposed to vibration, moisture, dust, sharp bending, and continuous environmental stress.
Designed for:
Telecom racks and enclosures
EV battery cable management
Portable machinery
Electrical cabinets
Outdoor electrical systems
Key Features
- IP68 Dustproof & Waterproof Protection: Ensures reliable sealing in harsh industrial and outdoor environments.
- Integrated Strain Relief Mechanism: Prevents conductor fatigue, pull-out, and sharp cable bending.
- High-Grade Nylon & TPE Construction: Provides durability, UV resistance, and long-term mechanical stability.
- Chemical & Environmental Resistance: Resistant to saltwater, oil, grease, and mild acids.
- Quick Assembly Design: Simplifies installation and includes dustproof caps for unused connectors.
- Colours: Black, Grey
Technical Specifications
- Product Name: Cable Gland (ODCL Series)
- Material: High-Grade Nylon & TPE
- Seal Components: Inside Seal, Dust Cap & O-Ring
- Operating Temperature: -25°C to +85°C
- Protection Rating: IP68
- Thread Type: PG Thread
- Cable Diameter Range: 6 mm to 32 mm
- Chemical Resistance: Saltwater, oil, grease, mild acids
- UV Resistance: Yes
- Vibration Resistance: Yes
- Additional Properties: Self-lubricating, self-extinguishing, non-magnetic
- Standard Colours: UV-Resistant Black (RAL 9005), Light Grey (RAL 7035)

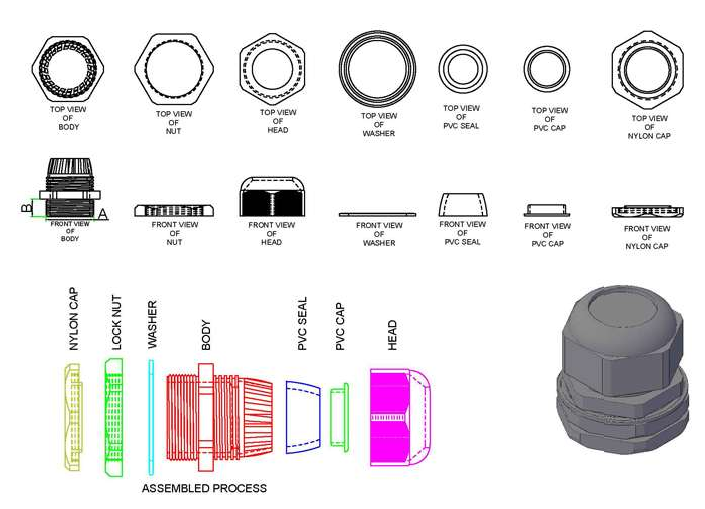

Product Dimensions
| Novoflex Part No. | Thread Dia (A) mm | Thread Length (B) mm | Cable Sealing Range Min. mm | Cable Sealing Range Max. mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| PG-09 (ODCL) | 15.1 | 15 | 6 | 8 | 100 | ||
| PG-11 (ODCL) | 18.4 | 15 | 5 | 11 | 100 | ||
| PG-16 (ODCL) | 22.5 | 15 | 10 | 13 | 100 | ||
| PG-21 (ODCL) | 27.8 | 15.1 | 13 | 18 | 100 | ||
| PG-29 (ODCL) | 36.7 | 13.5 | 20 | 23 | 100 | ||
| PG-36 (ODCL) | 46.4 | 15 | 18 | 32 | 100 |
Standard & Custom Colours
Applications
- Telecom racks and cabinets
- EV battery systems
- Automotive electrical assemblies
- Portable machinery
- Industrial control panels
- Outdoor electrical installations
- Electrical distribution systems
- Moving mechanical equipment
- Data and communication infrastructure
Use When
- Cable sealing against water and dust is critical
- Electrical systems operate in high-vibration environments
- Flexible cables require strain relief protection
- Outdoor UV exposure is expected
- Telecom or EV systems require long-term reliability
Avoid When
- Armoured cable termination is required
- Operating temperatures exceed specified limits
- Extreme chemical exposure exceeds Nylon/TPE compatibility
- Heavy mechanical load-bearing support is necessary
Why Novoflex
Novoflex cable protection systems are engineered to withstand the realities of industrial operation — vibration, contamination, environmental exposure, and installation pressure. Designed for OEMs, telecom infrastructure, and advanced electrical systems, Novoflex products deliver consistent protection, installation efficiency, and long-term operational reliability.NOVOFLEX |
