NOVOFLEX | Hexagonal Metric Thread Nylon Cable Gland
Sealed cable entry with vibration resistance
Designed for secure cable entry, sealing, and strain relief in electrical panels, industrial enclosures, and equipment exposed to vibration, moisture, and environmental fluctuations.
Key Features
- Metric thread design for precise panel fitting
- Strong sealing and strain relief for cable protection
- Corrosion-resistant and lightweight Nylon construction
- High resistance to shock, vibration, and environmental stress
- Suitable for a wide cable diameter range (6 mm to 27 mm)
Technical Specifications
- Material: High-Grade Nylon 6 (Polyamide)
- Thread Type: Metric Thread (Hexagonal)
- Cable Diameter Range: 6 mm to 27 mm
- Temperature Range: -25°C to +85°C
- Melting Temperature: 218°C
- Tensile Strength: 595 Kg/cm²
- Volume Resistivity: 1.5 × 10¹² ohm-cm
- Colour: UV-Resistant Black (Custom on request)

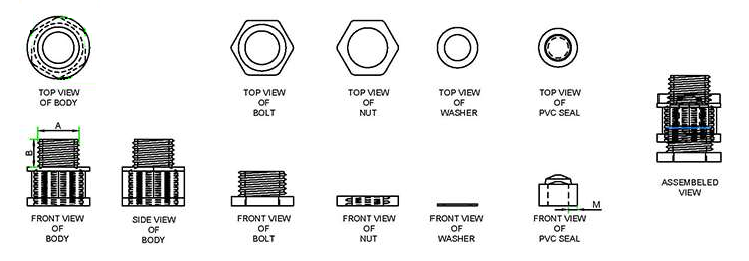

Product Dimensions
| Novoflex Part No. | Entry Thread Dia (A) - mm | Thread Length (B) - mm | Cable Sealing Range Min. - mm | Cable Sealing Range Max. - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| NG 16 MS | 16 | 10.5 | 6 | 8 | 100 | ||
| NG 16 M | 16 | 10.5 | 8 | 10 | 100 | ||
| NG 20 MS | 20 | 10.5 | 8 | 12 | 100 | ||
| NG 20 M | 20 | 10.5 | 10 | 18 | 100 | ||
| NG 25 M | 25 | 11 | 14 | 21 | 100 | ||
| NG 32 M | 32 | 10.5 | 19 | 27 | 100 |
Standard & Custom Colours
Applications
- Electrical control panels
- Industrial enclosures
- Cable entry systems
- Machinery and equipment wiring
Use When
- Sealed cable entry is required
- Vibration-resistant cable fixing is needed
- Corrosion-free and lightweight solutions are preferred
- Electrical insulation and safety are critical
Avoid When
- Armoured cable glands are required
- Extreme temperatures exceed specified limits
- Non-threaded panel installation is needed
- Oversized cable diameters beyond range are used
