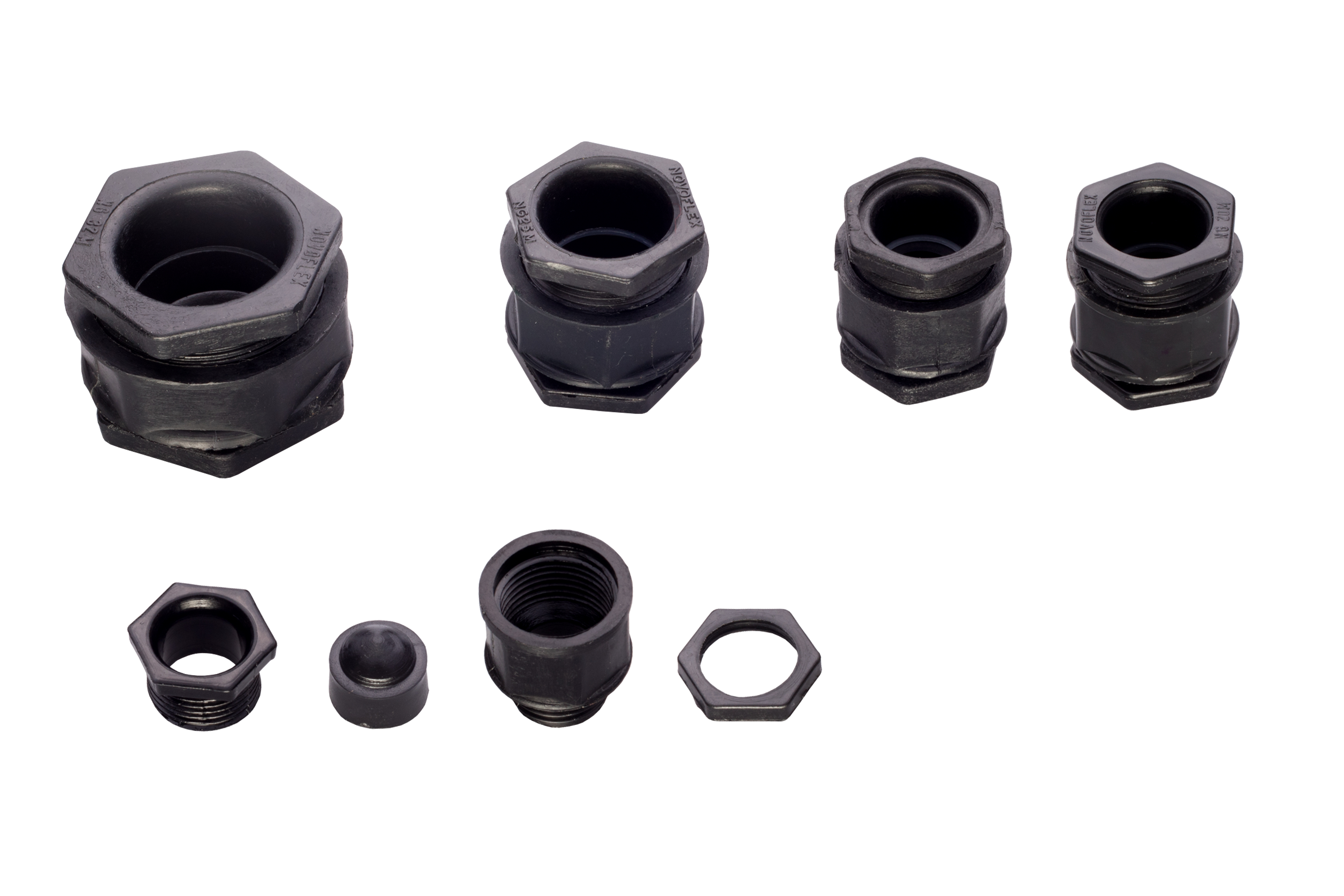

NOVOFLEX | MG Metric Thread Cable Glands
Metric-thread cable sealing with strain relief
Designed for securing and protecting flexible cables in electrical systems, industrial machinery, mobile equipment, and outdoor installations where strain relief, environmental sealing, and vibration resistance are critical.
Key Features
- Metric thread cable entry system
- Integrated strain relief for flexible cables
- Automatic cable centering and fixing
- Corrosion-resistant and vibration-proof construction
- Suitable for indoor and outdoor installations
Technical Specifications
- Material: High-Quality Nylon 6 (Polyamide)
- Thread Type: MG Metric Thread
- Cable Compatibility: Unarmoured Plastic-Insulated Cables
- Operating Temperature: -25°C to +85°C
- Load Deflection Temperature: 151°C at 66 psi
- Tensile Strength: 595 kg/cm²
- Volume Resistivity: 1.5 × 10¹² ohm-cm
- Properties: Non-Magnetic, Non-Conductive, Self-Extinguishing
- Environmental Resistance: Saltwater, Oils, Fuels, Alcohol, Solvents
- Installation Feature: Automatic Centering and Fixing
- Colour: UV-Resistant Black

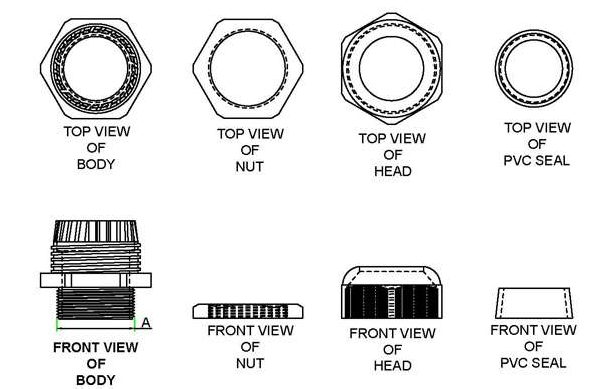

Product Dimensions
| Novoflex Part No. | Entry Thread Metric | Thread Dia (A) mm | Cable Sealing Range Min. - mm | Cable Sealing Range Max. - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| MG 12 | M12 X 1.25 | 11.7 | 4 | 6.5 | 100 | ||
| MG 16 | M16 X 1.5 | 15.7 | 6 | 8.5 | 100 | ||
| MG 20 | M20 X 1.5 | 20 | 8.5 | 12 | 100 | ||
| MG 22 | M22 X 1.5 | 21.8 | 10 | 15.5 | 100 | ||
| MG 25 | M25 X 1.5 | 25 | 11 | 17 | 100 | ||
| MG 32 | M32 X 1.5 | 31.5 | 16 | 20 | 100 | ||
| MG 40 | M40 X 1.5 | 40 | 25 | 31 | 100 |
Standard & Custom Colours
Applications
- Electrical control panels
- Mobile machinery and equipment
- Industrial automation systems
- Outdoor electrical installations
- Telecom and utility infrastructure
- Renewable energy systems
Use When
- Flexible cables require strain relief
- Outdoor or corrosive environments are involved
- Vibration-resistant cable sealing is necessary
- Lightweight non-metallic glands are preferred
Avoid When
- Armoured cable applications are required
- Extreme temperatures exceed specified limits
- Heavy mechanical load-bearing support is needed
- Non-threaded mounting systems are used
