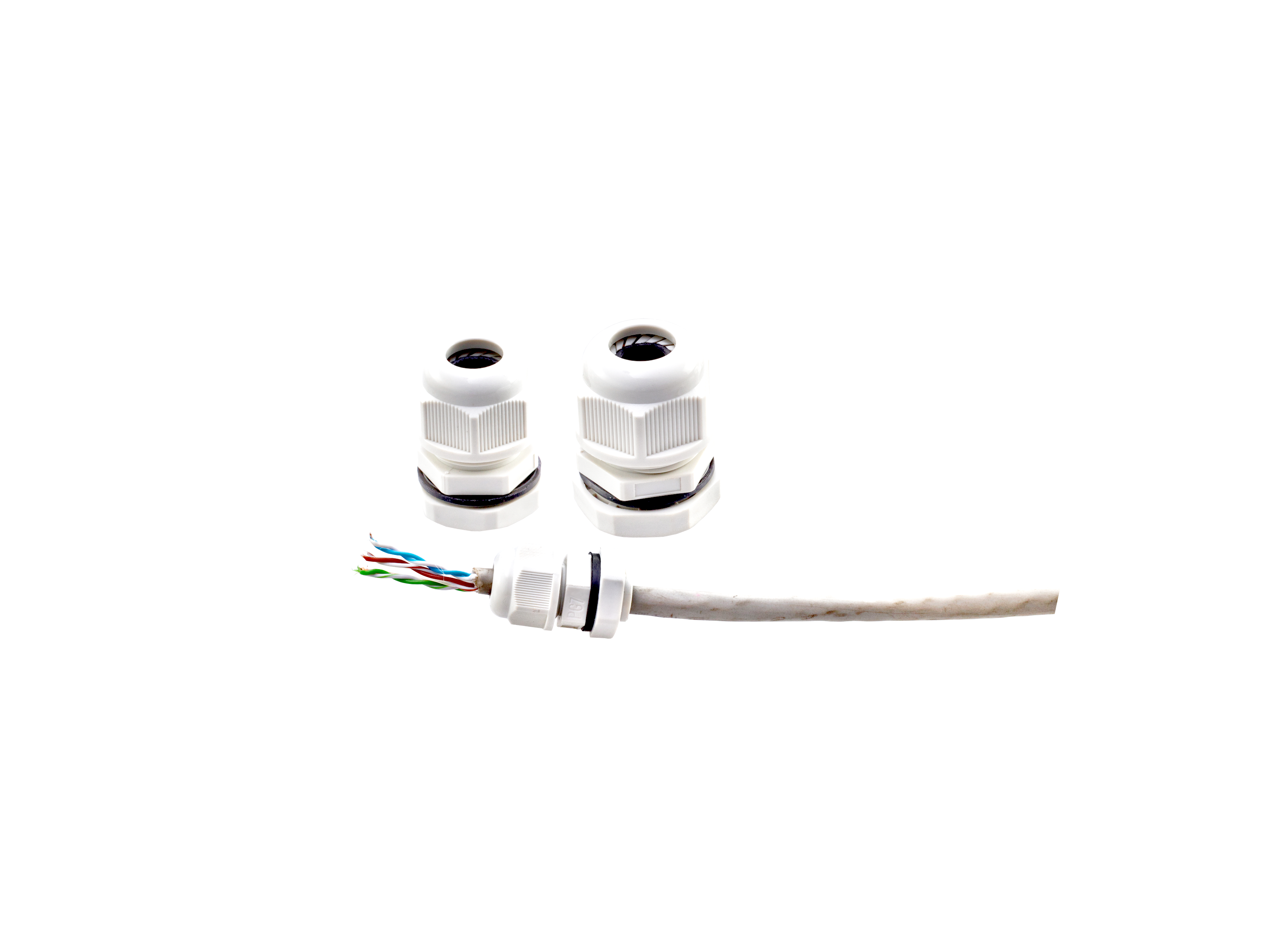

NOVOFLEX | PG Thread Cable Gland
Watertight cable sealing with strain relied
Designed for secure cable entry, sealing, and strain relief in industrial panels, electrical enclosures, machinery, and outdoor installations exposed to dust, moisture, vibration, and environmental stress.
Key Features
- PG thread design for secure enclosure mounting
- IP66 sealing with additional O-ring protection
- Internal strain relief prevents cable damage
- Resistant to vibration, corrosion, and industrial chemicals
- High-temperature variant available up to 115°C continuous use
Technical Specifications
- Material: UL-Listed Nylon 6 (Polyamide)
- Thread Type: PG Thread
- Ingress Protection: IP68 with Additional O-Ring
- Continuous Temperature Range: -25°C to +85°C
- Intermittent Temperature: Up to +100°C for 500 Hours
- High-Temperature Variant: Up to +115°C Continuous Use
- Seal Material: Rubber (Inside Seal & O-Ring)
- Tensile Strength: 595 Kg/cm²
- Volume Resistivity: 1.5 × 10¹² ohm-cm
- Deflection Temperature: 151°C at 66 psi
- Chemical Resistance: Salt Water, Oils, Solvents, Weak Acids & Alkalis
- Properties: Corrosion-Resistant, Vibration-Proof, Non-Magnetic, Non-Conductive
- Colour Options: UV-Resistant Black (RAL 9005), Light Grey (RAL 7035)

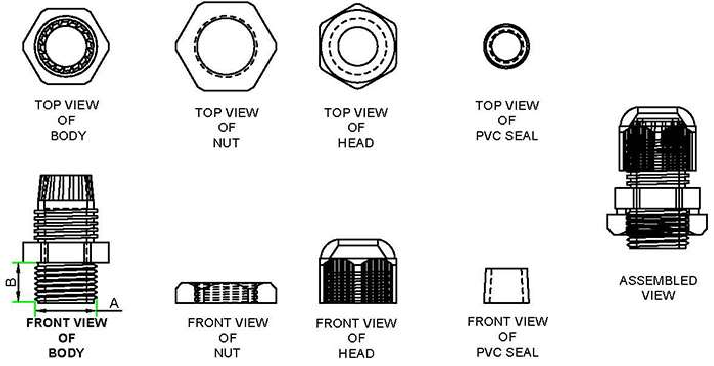

Product Dimensions
| Novoflex Part No. | Thread Dia (A) mm | Thread Length (b) mm | Cable Sealing Range Min. mm | Cable Sealing Range Max. mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| PG 7 | 12.4 | 8.5 | 3 | 6 | 100 | ||
| PG 9 | 15.1 | 11.1 | 6 | 8 | 100 | ||
| PG 11 | 18.4 | 10.1 | 5 | 11 | 100 | ||
| PG 13.5 | 20.3 | 10.5 | 6 | 12 | 100 | ||
| PG 16 | 22.5 | 11 | 10 | 13 | 100 | ||
| PG 19 | 23.8 | 11.5 | 8.5 | 13 | 100 | ||
| PG 21 | 28.1 | 11.8 | 13 | 18 | 100 | ||
| PG 25 | 29.9 | 11 | 16 | 21 | 100 | ||
| PG 29 | 36.7 | 13.5 | 20 | 23 | 100 | ||
| PG 36 | 46.4 | 15 | 18 | 32 | 100 | ||
| PG 42 | 54.3 | 17.1 | 35 | 38 | 100 | ||
| PG 48 | 58 | 15.7 | 39 | 43 | 100 | ||
| PG 63 | 70.2 | 26.5 | 42 | 51 | 100 |
Standard & Custom Colours
Applications
- Electrical control panels
- Industrial machinery and equipment
- Outdoor electrical enclosures
- Telecom and infrastructure installations
- Utility and renewable energy systems
- Marine and corrosive environments
- 9.
Use When
- Watertight cable entry protection is required
- Cable strain relief is critical
- Outdoor or corrosive environments are involved
- Vibration-resistant cable sealing is necessary
Avoid When
- Armoured cable glands are required
- Extreme temperatures exceed specified ratings
- Non-threaded mounting systems are used
- Heavy mechanical load-bearing applications are involved
Why Novoflex
Novoflex engineers cable entry systems that combine sealing reliability, strain relief, and environmental durability. By integrating advanced thermoplastic materials with precision sealing technology, Novoflex delivers dependable performance across demanding industrial environments.NOVOFLEX |
