NOVOFLEX | Strain Relief Cable Glands
Flexible cable protection against bending stress
Designed for portable equipment, moving machinery, flexible cable systems, and dynamic electrical installations where cables are exposed to continuous pull, push, twisting, and bending forces.
Key Features
- Spiral strain relief for flexible cable protection
- Reduces damage from pull, push, and twist forces
- Prevents sharp-angle cable bending
- Durable Nylon construction for industrial applications
- Suitable for dynamic and moving cable systems
Technical Specifications
- Material: High Quality Nylon 6 (Polyamide)
- Operating Temperature: -25°C to +85°C
- Design Type: Spiral Strain Relief Structure
- Protection Function: Pull, Push & Twist Force Relief
- Cable Type: Flexible Cables & Wires
- Colour: UV-Resistant Black

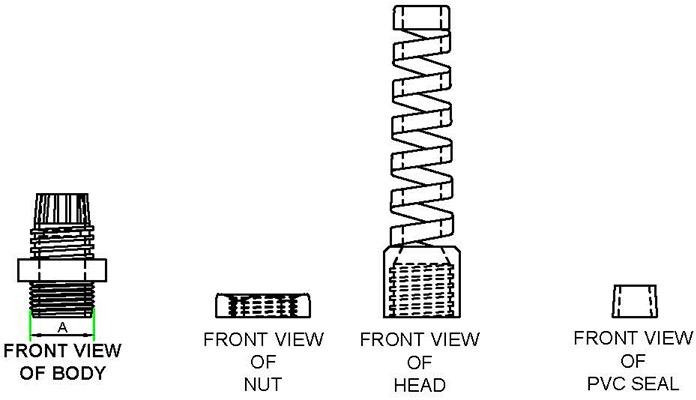

Product Dimensions
| Novoflex Part No. | Entry Thread Metric | Thread Dia (A) - mm | Cable Sealing Range Min. - mm | Cable Sealing Range Max. - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| MG 12 SR | M12 X 1.25 | 12 | 3 | 6.5 | 100 | ||
| MG 16 SR | MG16 X 1.5 | 16.1 | 5 | 10 | 100 |
Product Dimensions — Table 2
| Novoflex Part No. | Thread Dia (A) - mm | Cable Sealing Range Min. - mm | Cable Sealing Range Max. - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|
| PG 9 SR | 15.8 | 4 | 8 | 100 | ||
| PG 11 SR | 17.4 | 5 | 10 | 100 | ||
| PG 13.5 SR | 19.9 | 6 | 12 | 100 | ||
| PG 16 SR | 22 | 10 | 14 | 100 |
Standard & Custom Colours
Applications
- Portable electrical equipment
- Moving industrial machinery
- Robotics and automation systems
- Power tools and handheld devices
- Flexible cable routing systems
- Dynamic cable entry applications
Use When
- Cables experience repeated movement or flexing
- Strain relief is critical for cable longevity
- Portable or moving equipment is involved
- Cable bending protection is required
Avoid When
- Static cable installations are sufficient
- Armoured cable systems are required
- Extreme temperatures exceed specifications
- Heavy mechanical load-bearing support is needed
Why Novoflex
Novoflex develops cable protection systems engineered for real-world mechanical stress. By integrating flexible strain relief with durable sealing technology, Novoflex products improve cable reliability in dynamic industrial environments.NOVOFLEX |
