NOVOFLEX | Push Fit Snapper Clip
Quick-Lock Capacitor Retention System
High-vibration electrical and electronic assemblies where aluminium electrolytic capacitors require fast, secure, and reusable mounting without metal hardware or complex fastening systems.
Commonly used in:
Power electronics
Industrial control systems
Automotive electronics
Telecom equipment
Railways and aviation systems
Key Features
- Durable Polyamide Construction: Manufactured from Nylon 6 for long-term durability and resistance to fungus, corrosion, and mild acids.
- Secure Jaw Locking Mechanism: Provides stable and vibration-resistant capacitor retention.
- Reusable Design: Allows multiple release and reinstallation cycles without damaging the clip.
- Non-Conductive Fastening Solution: Suitable for electrical and electronic assemblies requiring insulation safety.
- Tool-Free or Assisted Installation: Can be installed manually or using basic hand tools for faster assembly.
Technical Specifications
- Product Name: Push Fit Snapper Clip
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Capacitor Diameter Compatibility: 25 mm to 30 mm
- Mounting Hole Diameter: 7.0 mm ± 0.2 mm
- Chassis Thickness Compatibility: 1 mm to 3 mm
- Standard Colour: Natural White
- Reusable: Yes
- Installation Type: Snap-Fit

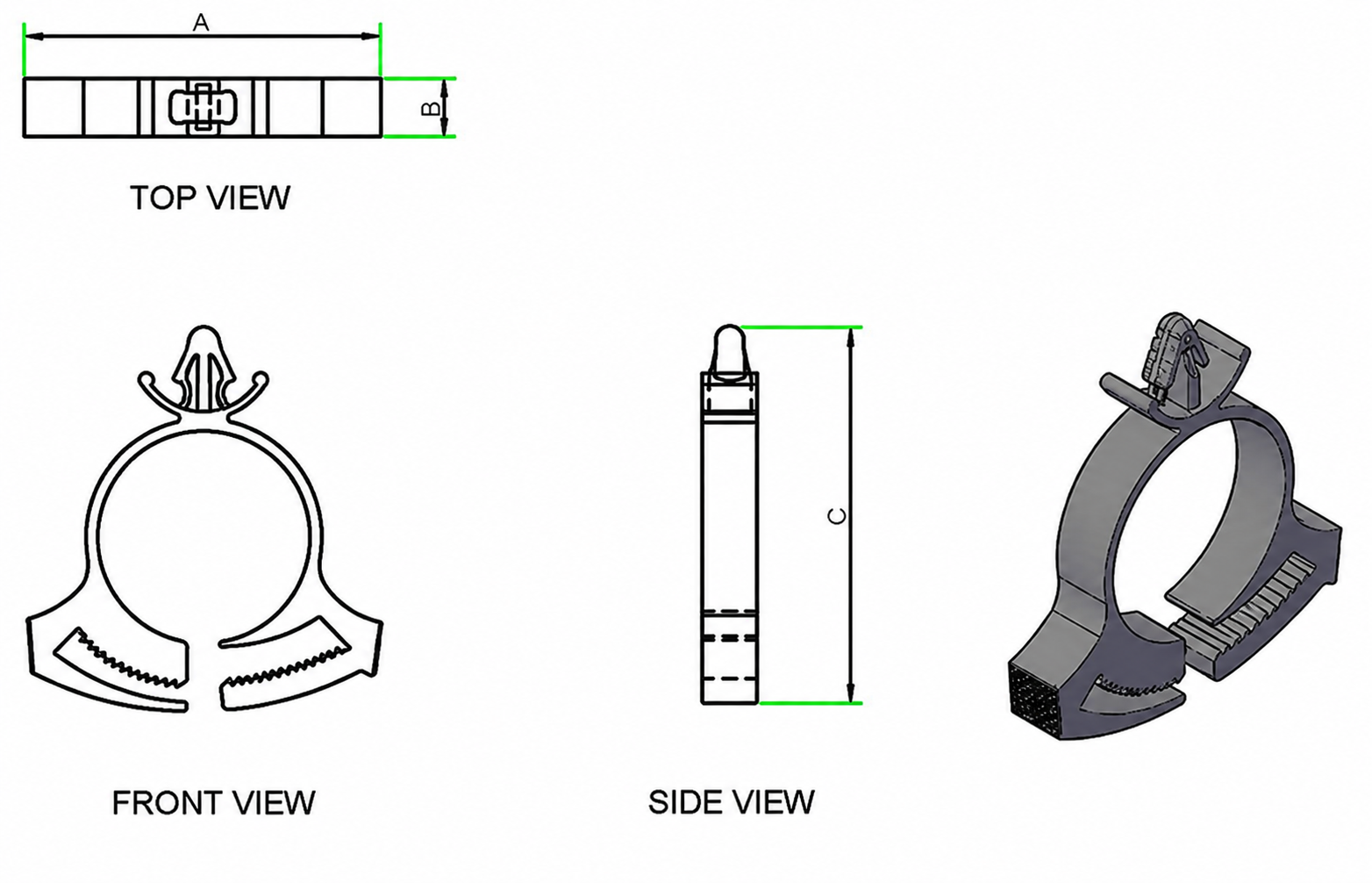

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Height (C) - mm | Push Hole Dia (F) - mm | Chassis Thickness mm | Cable Dia Range -mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| PSC 30 | 50 | 7.9 | 52.5 | 7.0 | 1 to 3 | 24 - 30 | 100 |
Standard & Custom Colours
Applications
- Aluminium electrolytic capacitor mounting
- Automotive electronics
- Railway electrical systems
- Aviation electrical assemblies
- Telecom equipment
- Power plants
- Consumer durables
- Industrial control panels
- Electrical cabinets
- New project installations
Use When
- Capacitors require vibration-resistant mounting
- Fast assembly and maintenance access are important
- Non-conductive mounting solutions are required
- Assemblies undergo repeated servicing
- Space-efficient fastening is needed
Avoid When
- Capacitor dimensions exceed specified compatibility range
- Operating temperatures exceed +85°C continuously
- Heavy-load structural retention is required
- Exposure involves aggressive chemicals beyond Nylon 6 resistance capability
