NOVOFLEX | Push Rivets
Tool-free multi-material panel fastening
Designed for quick and secure fastening of panels across mixed materials such as metal, plastic, rubber, wood, and glass in automotive, construction, and industrial assemblies.
Key Features
- Tool-free push-fit installation
- Expansion wings for secure and stable locking
- Suitable for multiple material types
- Lightweight yet mechanically strong
- UV-resistant black finish for durability
Technical Specifications
- Material: High-Grade Nylon 6 (Polyamide)
- Mount Type: Push Rivet
- Installation Method: Tool-Free Push Fit
- Temperature Range: -25°C to +85°C
- Colour: UV-Resistant Black
- Compatibility: Metal, Wood, Rubber, Glass, Plastic

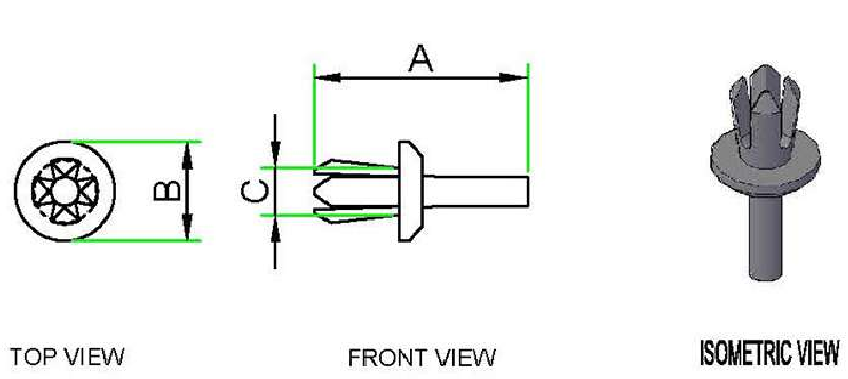

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Rivet Dia (B) - mm | Hole Dia (C) - mm | Total Material Thickness Range - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| PR 01 | 20 | 9.3 | 4.4 | 2.0 - 5.0 | 100 | ||
| PR 02 | 25.6 | 11.5 | 6.2 | 4.0 - 8.0 | 100 |
Standard & Custom Colours
Applications
- Automotive panel fastening
- Construction assemblies
- Industrial equipment housing
- Multi-material structural fixing
Use When
- Fast, tool-less panel fastening is required
- Multiple material types need to be joined
- Lightweight fastening solutions are preferred
- Consistent and repeatable installation is needed
Avoid When
- High structural load-bearing joints are required
- Reusable fastening is necessary
- Hole sizes or panel thicknesses are incompatible
- Extreme temperatures exceed specified limits
Why Novoflex
Novoflex develops fastening solutions that simplify assembly while ensuring consistent mechanical performance. By combining ease of installation with reliable retention, Novoflex products reduce time, complexity, and long-term failure risks.NOVOFLEX |
