NOVOFLEX | Snap Rivets
Two-piece vibration-resistant panel locking
Designed for securely joining panels of varying thicknesses in high-vibration environments across automotive, electronics, and construction assemblies where consistent locking and stability are critical.
Key Features
- Two-piece design for adaptable thickness fastening
- Push-lock mechanism for tool-free installation
- Strong vibration-resistant locking system
- Suitable for multiple material types
- UV-resistant black finish for durability
Technical Specifications
- Material: High-Grade Nylon 6 (Polyamide)
- Type: Two-Piece Snap Rivet
- Installation Method: Push-Lock Mechanism
- Temperature Range: -25°C to +85°C
- Colour: UV-Resistant Black
- Compatibility: Metal, Wood, Rubber, Glass, Plastics

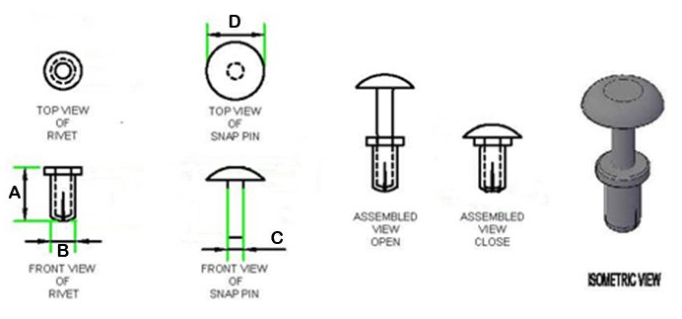

Product Dimensions
| Novoflex Part No. | Rivet length (A) - mm | Hole Dia (B) - mm | Snap Pin Width (C) - mm | Snap Pin Head Dia (D) - mm | Plate Thickness (Nos.) - mm | Standard Packing | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| SR 355 | 6.4 | 3 | 1.9 | 6 | 2.5 - 4.0 | 500 | ||
| SR 365 | 7.7 | 3 | 1.9 | 6 | 3.5 - 5.0 | 500 | ||
| SR 3545 | 6 | 3.5 | 1.9 | 6.5 | 3.5 - 5.0 | 500 | ||
| SR 3565 | 8 | 3.5 | 2 | 6.1 | 3.5 - 5.0 | 500 | ||
| SR 4040 | 5 | 4 | 2.4 | 8 | 1.5 - 2.5 | 500 | ||
| SR 4080 | 9 | 4 | 2.5 | 8 | 3.5 - 5.0 | 500 |
Standard & Custom Colours
Applications
- Automotive panel assemblies
- Electronic enclosures
- Construction and structural panels
- Multi-material fastening systems
Use When
- Materials of varying thickness need to be joined
- Vibration resistance is critical
- Tool-free installation is preferred
- Secure and stable panel locking is required
Avoid When
- High structural load-bearing is required
- Reusable fastening is needed
- Panel hole specifications are incompatible
- Extreme environments exceed material limits
Why Novoflex
Novoflex designs fastening systems that address real-world assembly challenges such as vibration, material variation, and installation efficiency. Each product is engineered to deliver consistent performance with minimal complexity.NOVOFLEX |
