NOVOFLEX | Flexiguard Close Grommet Rings
Closed-edge cable protection against abrasion and wear
Designed for industrial, automotive, and electrical applications where wires and cables pass through enclosed panel openings and require insulated protection against sharp edges, abrasion, and environmental exposure.
Key Features
- Closed grommet design for enhanced cable protection
- Snap-in installation for quick mounting
- Resistant to oils, chemicals, and environmental aging
- Flexible TPE construction for vibration absorption
- Protects wires from abrasion and edge damage
Technical Specifications
- Material: TPE
- Operating Temperature: -20°C to +70°C
- Installation Type: Snap-In Closed Grommet
- Environmental Resistance: Chemicals, Oils & Aging Resistance
- Standard Colour: Black

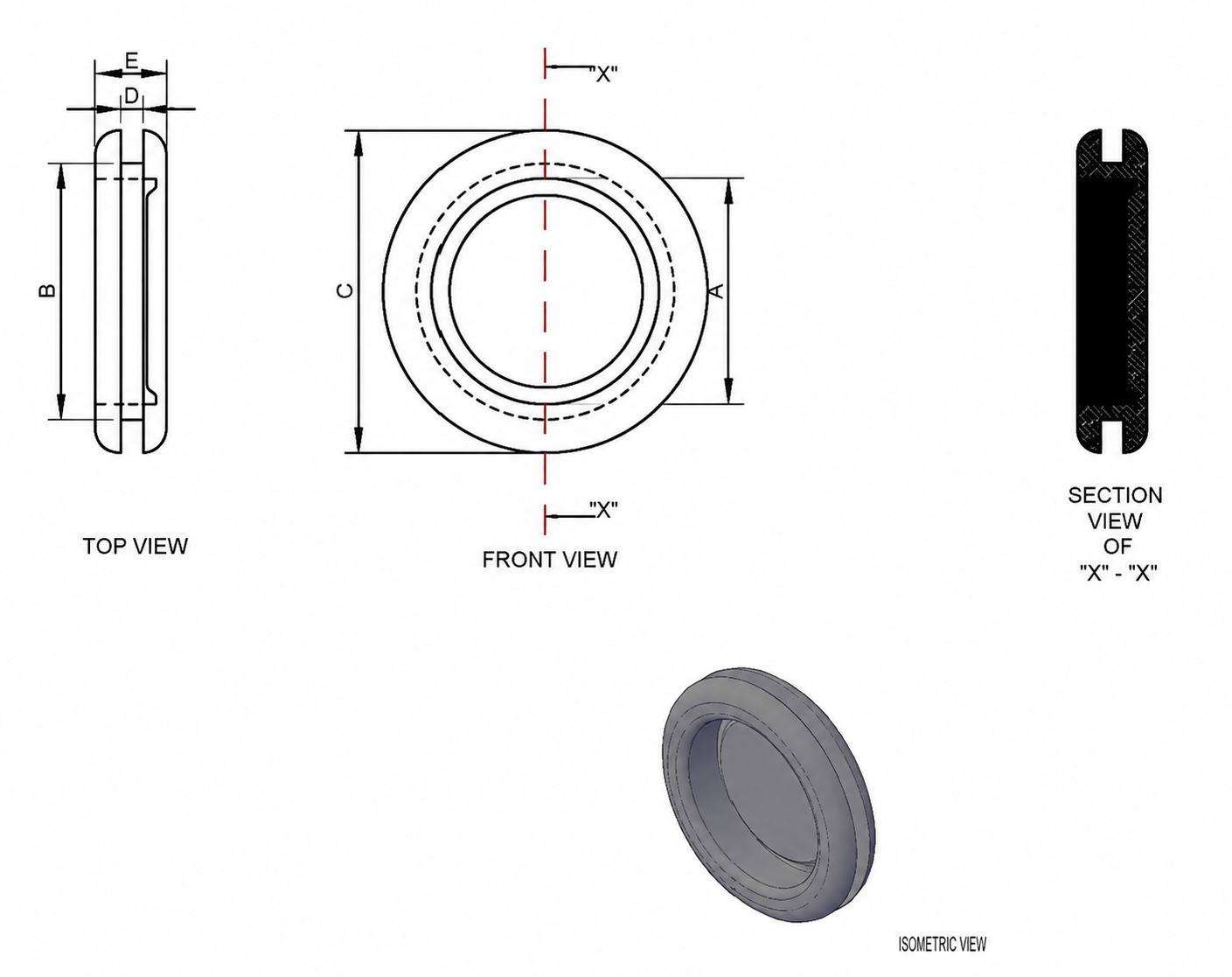

Product Dimensions
| Novoflex Part No. | Cable Dia A (mm) | Panel Hole Dia B (mm) | Grommet Out Side Dia C (mm) | Panel Thickness D (mm) | Thickness E (mm) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| GR 10 C | 6 | 10 | 13.2 | 1.7 | 5.5 | 100 | ||
| GR 13 C | 7.7 | 13 | 16 | 1.5 | 5.1 | 100 | ||
| GR 16 C | 11 | 15.5 | 19 | 1.6 | 5.8 | 100 | ||
| GR 20 C | 16 | 19.4 | 25.3 | 1.5 | 6.8 | 100 | ||
| GR 25 C | 22 | 25 | 31.5 | 1.8 | 6.8 | 100 | ||
| GR 30 C | 26.5 | 30 | 45.3 | 3.4 | 7 | 100 | ||
| GR 38 C | 32 | 38 | 51.8 | 3.1 | 7 | 100 | ||
| GR 50 C | 46 | 47 | 61 | 2 | 9 | 100 | ||
| GR 63 C | 59 | 63.5 | 77 | 2 | 12.1 | 100 | ||
| GR 76 C | 73 | 78.5 | 91 | 2 | 11.7 | 100 |
Standard & Custom Colours
Applications
- Electrical control panels
- Automotive wiring systems
- Industrial machinery cable routing
- Chassis cable entry protection
- Equipment enclosures
- Wire passage through enclosed openings
Use When
- Cable insulation requires edge protection
- Enclosed panel openings need abrasion control
- Chemical and oil resistance are necessary
- Flexible cable movement occurs near mounting edges
Avoid When
- High-temperature conditions exceed specifications
- Structural sealing against pressure is required
- Heavy-duty strain relief applications are involved
- Rigid mounting support is necessary
Why Novoflex
Novoflex engineers cable protection systems that reduce long-term wiring failures caused by abrasion, friction, and environmental stress. Through durable materials and installation-efficient designs, Novoflex products improve reliability across demanding electrical and industrial systems.NOVOFLEX |
