NOVOFLEX | Flexiguard Grommet Rings
Edge protection for cables through panel openings
Designed for electrical, automotive, industrial, and equipment applications where wires and cable cords pass through panel cut-outs or chassis openings exposed to sharp edges and mechanical abrasion.
Key Features
- Protects cables from sharp panel edges
- Flexible snap-in installation design
- Resistant to oils, fuels, and ozone exposure
- Durable and adaptable TPE construction
- Suitable for industrial and automotive
Technical Specifications
- Material: TPE
- Operating Temperature: -20°C to +70°C
- Installation Type: Snap-In Grommet Ring
- Environmental Resistance: Fluids, Oils, Fuels, Ozone & Aging
- Standard Colour: Black

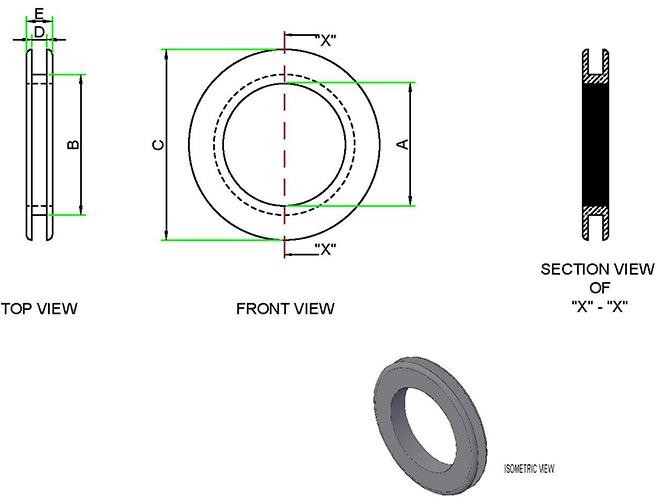

Product Dimensions
| Novoflex Part No. | Cable Dia A (mm) | Panel Hole Dai B (mm) | Grommet Out Side Dia C (mm) | Panel Thickness D (mm) | Thickness E (mm) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| GR 06 | 4.8 | 6.2 | 10 | 1.6 | 5.4 | 100 | ||
| GR 08 | 5.7 | 7.7 | 10.2 | 2.2 | 6 | 100 | ||
| GR 10 | 7.2 | 10 | 13.4 | 1.8 | 6.5 | 100 | ||
| GR 11 | 5.8 | 9.6 | 12 | 3.5 | 7.7 | 100 | ||
| GR 13 | 8.1 | 12.5 | 16.1 | 1.6 | 6.2 | 100 | ||
| GR 13A | 10.5 | 12.5 | 17.6 | 2.1 | 8.1 | 100 | ||
| GR 16 | 11.5 | 15.2 | 19.5 | 1.7 | 7.5 | 100 | ||
| GR 20 | 12.4 | 19.2 | 24.2 | 1.7 | 6.4 | 100 | ||
| GR 25 | 22 | 24.5 | 31 | 2.2 | 8 | 100 | ||
| GR 30 | 27.6 | 30.3 | 45.5 | 3.5 | 7.1 | 100 | ||
| GR 38 | 33 | 38 | 53 | 3 | 7 | 100 |
Standard & Custom Colours
Applications
- Electrical panel wiring
- Automotive cable routing
- Industrial equipment wiring
- Chassis cable protection
- Machinery cable entry points
- Wire passage through metal openings
Use When
- Cables pass through sharp-edged openings
- Abrasion protection is necessary
- Flexible cable movement is expected
- Chemical and fluid resistance is important
Avoid When
- High-temperature environments exceed specifications
- Structural sealing applications are required
- Heavy compression sealing is necessary
- Rigid fixed cable support is preferred
Why Novoflex
Novoflex develops cable protection systems engineered to improve long-term wiring reliability under demanding industrial conditions. By combining flexible materials with practical installation design, Novoflex products reduce hidden cable damage and improve system durability.NOVOFLEX |
