NOVOFLEX | CAP for Connectors
Protected Connector Termination & Cable Routing
Automotive, industrial, telecom, and electronic systems where connector assemblies require secure cable routing, strain relief, environmental protection, and vibration-resistant performance.
Designed for:
Wiring harness protection
Connector termination sealing
High-vibration electrical systems
Organized cable routing in compact assemblies
Key Features
- 180° Cable Routing Design
- Optimizes cable direction and installation efficiency in confined spaces.
- Integrated Strain Relief Protection
- Reduces mechanical stress on cable termination points.
- Ribbed Outer Structure
- Improves handling, grip, and installation stability.
- Rugged Environmental Protection
- Shields connectors from moisture, dust, abrasion, and vibration.
- RoHS Compliant Construction
- Free from hazardous substances and aligned with global environmental standards.
Technical Specifications
- Product Name: CAP Connectors
- Material: UL Listed Nylon 6.6 (Polyamide)
- Design Configuration: 180° Angle Design
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- UV Resistance: Yes
- Chemical Resistance: Yes
- Abrasion Resistance: Yes
- Locking System: Positive Locking with Quick Lock Pin
- Environmental Compliance: RoHS Compliant
- Standard Colour: UV-Resistant Black

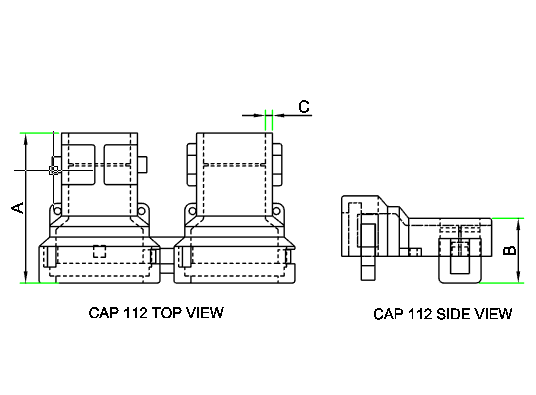

Product Dimensions
| Novoflex Part No. | Length - A (mm) | Width – B (mm) | Thickness - C(mm) | Suitable Cable / Pipe Dia. (mm) | Suitable For | Colour | Material | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|
| CAP 200 | 40 | 49 | 1.1 | 20 | Cap for 42 Pin Connector | Black | PA66 | 100 | ||
| CAP 125 | 38.6 | 40.4 | 1.1 | 12.5 | Cap for 20 Pin Connector | Black | PA 66 | 100 | ||
| CAP 126 | 38.2 | 37.2 | 1.1 | 12.6 | Cap for 20 Pin Connector | Black | PA66 | 100 | ||
| CAP 112 | 32.1 | 13.7 | 1.1 | 11.2 | Cap 180° | |||||
| For Conduit,Black,PA 66,100 | ||||||||||
| CAP 150 | 45.8 | 36 | 1.3 | 15 | Cap 180° | |||||
| For 16 Pin Connector,Black,PA 66,100 |
Applications
- Automotive wiring harness systems
- Industrial control systems
- Telecom infrastructure
- Power and data cable management
- Electronic equipment assemblies
- Machinery cable protection
- High-vibration electrical installations
- Compact electrical enclosures
Use When
- Connector assemblies require strain relief protection
- Cable routing space is limited
- Systems operate in vibration-prone environments
- Dust and moisture protection are necessary
- Organized and secure cable termination is required
Avoid When
- Heavy-load structural cable retention is required
- Operating temperatures exceed specified limits
- Metal EMI shielding is mandatory
- Exposure involves chemicals beyond Nylon 6.6 compatibility
Why Novoflex
Novoflex connector management solutions are engineered to improve the durability, stability, and protection of electrical connection systems. Designed for demanding industrial environments, Novoflex products reduce installation stress, improve cable reliability, and provide long-term protection against vibration, contamination, and mechanical wear.
