NOVOFLEX | Backshells for Connectors
Connector Protection & Strain Relief System
Automotive, industrial, telecom, aerospace, and electronic systems where connector assemblies are exposed to vibration, mechanical stress, contamination, and continuous cable movement.
Designed for:
Wiring harness protection
Circular and rectangular connector systems
High-vibration electrical assemblies
Harsh industrial and outdoor environments
Key Features
- Robust Nylon 6.6 Construction
- Delivers high mechanical strength, thermal stability, and abrasion resistance.
- Integrated Strain Relief System
- Protects cable termination points from pull, flex, and vibration stress.
- Environmental Protection
- Shields connectors from dust, moisture, and environmental contaminants.
- Positive Locking Performance
- Ensures secure retention in high-vibration applications.
- RoHS Compliant Design
- Free from hazardous substances including lead, mercury, and cadmium.
Technical Specifications
- Product Name: Backshell Connectors
- Material: UL Listed Nylon 6.6 (Polyamide)
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- UV Resistance: Yes
- Chemical Resistance: Yes
- Abrasion Resistance: Yes
- Locking System: Positive Locking with Quick-Lock Pin
- Environmental Compliance: RoHS Compliant
- Standard Colour: UV-Resistant Black

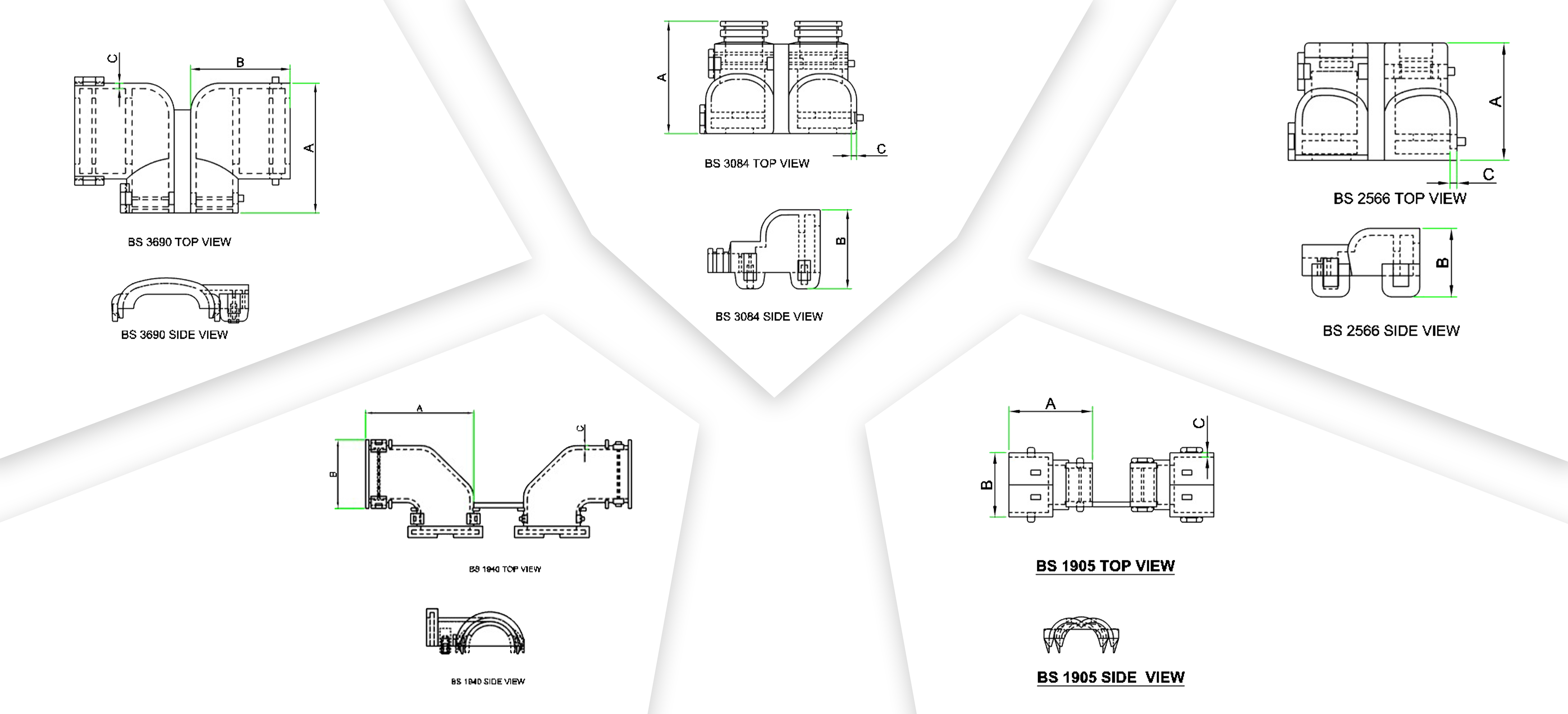

Product Dimensions
| Novoflex Part No. | Length - A (mm) | Width - B(mm) | Thickness - C (mm) | Suitable Cable / | Quantity | Select |
|---|---|---|---|---|---|---|
| BS 3084 | 30.5 | 21.7 | 1.1 | 8.4 | ||
| BS 2566 | 24.9 | 14.6 | 1.1 | 6.6 | ||
| BS 3690 | 35.5 | 27.2 | 1.6 | 7.6 | ||
| BS 1905 | 19 | 14.6 | 1.1 | 5 | ||
| BS 194 | 35.5 | 27 | 1.1 | 19.4 | ||
| 3 Pole,Black,PA66,100 |
Applications
- Automotive wiring harness systems
- Industrial machinery and control systems
- Telecom infrastructure
- Data and power cable protection
- Electronic equipment assemblies
- Aerospace electrical systems
- Defence equipment
- Outdoor electrical installations
- Heavy equipment cable management
Use When
- Connector terminations require strain relief protection
- Electrical systems operate in high-vibration environments
- Cable assemblies are exposed to dust or moisture
- Fast and secure connector installation is necessary
- Long-term cable reliability is critical
Avoid When
- Connector systems exceed specified temperature limits
- Heavy structural cable retention is required
- Extreme chemical environments exceed Nylon 6.6 compatibility
- Metal EMI shielding is specifically required beyond polymer protection capability
Why Novoflex
Novoflex connector protection systems are engineered to secure the most vulnerable points in electrical assemblies — the interface between cable and connection. Designed for industrial reliability and long-term durability, Novoflex solutions improve installation stability, reduce maintenance failures, and ensure dependable performance in demanding environments.
