NOVOFLEX | Fire Retardant Spirowrap Harness Band
Flame-Resistant Spiral Cable Protection System
Flexible cable bundling, abrasion protection, and organized wire routing in electrical, automotive, railway, telecom, aerospace, and industrial systems where cable movement, vibration, and mechanical contact create long-term wear risks. Designed for dynamic wiring environments requiring expandable cable protection with easy breakout access and flame-retardant performance.
Cable harnesses operating in moving or high-density environments are constantly exposed to abrasion, vibration, and routing stress. Conventional rigid protection systems restrict flexibility and complicate maintenance access. Novoflex Fire Retardant Spirowrap Harness Band is engineered to provide flexible, flame-resistant cable protection while allowing controlled cable breakout and simplified harness management.
Key Features
- Spiral wrap design enables easy cable breakout and rerouting.
- Fire-retardant construction improves electrical safety.
- Protects wires and tubing against abrasion and mechanical wear.
- Flexible structure adapts to varying bundle diameters.
- Lightweight, non-conductive, and corrosion-resistant material.
- Simplifies cable organization and maintenance access.
- Suitable for dynamic cable routing systems.
- Resistant to fungus, corrosion, and mild acids.
- Supplied in 50 & 25 meter rolls.
Technical Specifications
- Material: LDPE (Low Density Polyethylene)
- Flammability Rating: UL94 V2
- Operating Temperature: 25°C to +85°C
- Standard Colour: Milky White & UV Resistant Black.
- Halogen Free: Yes
- Resistance: Fungus, Corrosion, Mild Acids
- Installation Type: Spiral Wrap
- Storage Condition: Cool, dry, sealed environment away from sunlight

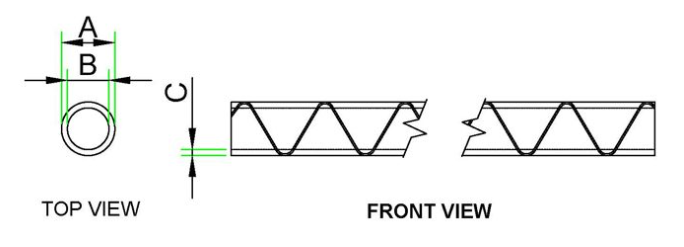

Product Dimensions
| Novoflex Part No. | Outside Dia A (mm) | Inside Dia B (mm) | Thickness C (mm) | Pitch (mm) | Suggested Bundle Dia Range (mm) | Standard Packing (Mtr.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| SW 3 FR | 4 | 3 | 0.5 | 4.8 | 2.5 to 5.5 | 50 | ||
| SW 6 FR | 6.3 | 4.9 | 0.7 | 9.5 | 5 to 11 | 50 | ||
| SW 9 FR | 9.2 | 7.6 | 0.8 | 11.1 | 8 to 15 | 25 | ||
| SW 12 FR | 11.2 | 9.2 | 1 | 12.7 | 10 to 20 | 25 | ||
| SW 16 FR | 15.2 | 12.8 | 1.2 | 16.5 | 12.5 to 30 | 25 | ||
| SW 19 FR | 18.8 | 15.8 | 1.5 | 19 | 15 to 40 | 25 | ||
| SW 25 FR | 24.6 | 20.6 | 2 | 25.4 | 21 to 60 | 25 |
Use When
- Cable harnesses require flexible breakout points.
- Abrasion protection is necessary in moving systems.
- Fire-retardant cable protection is required.
- Organized wire routing improves maintenance access.
- Dynamic cable systems require expandable protection.
Avoid When
- Fully sealed conduit systems are required.
- Heavy mechanical crushing loads are present.
- Extreme temperatures exceed material operating limits.
- EMI shielding is mandatory.
- Metal-armored protection systems are required.
